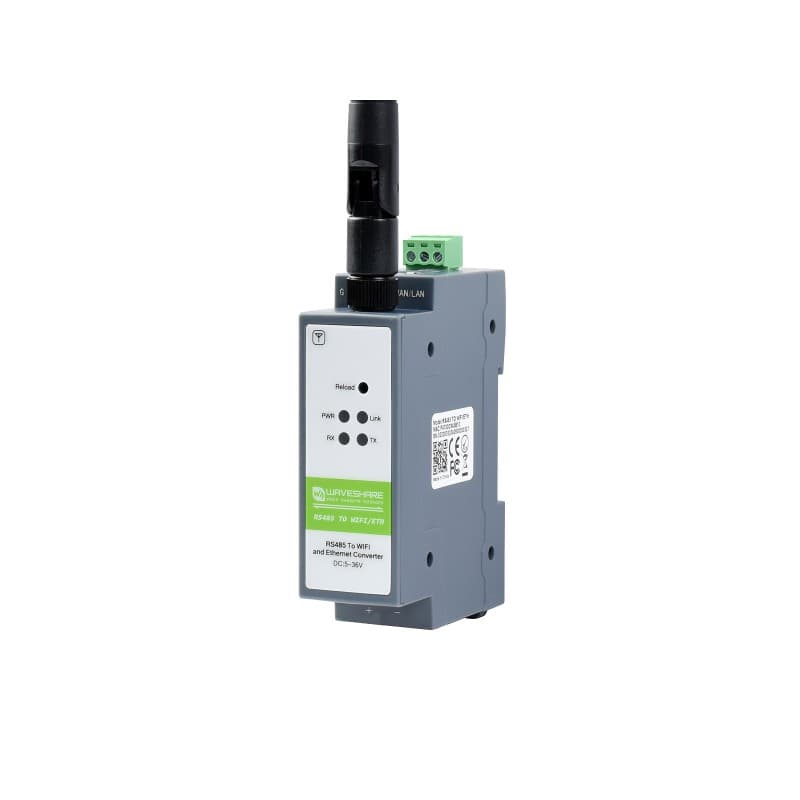

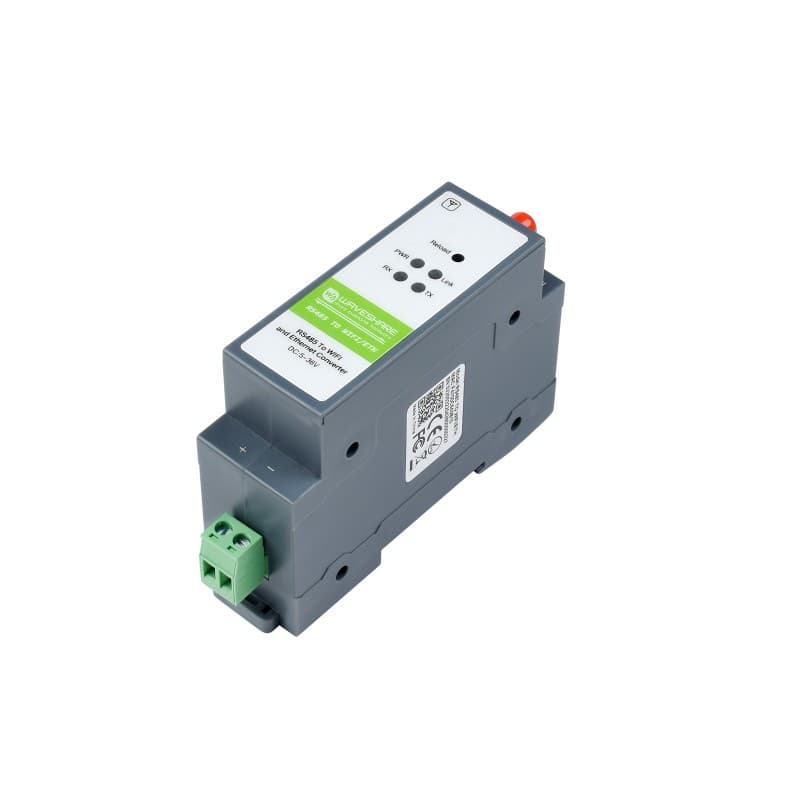

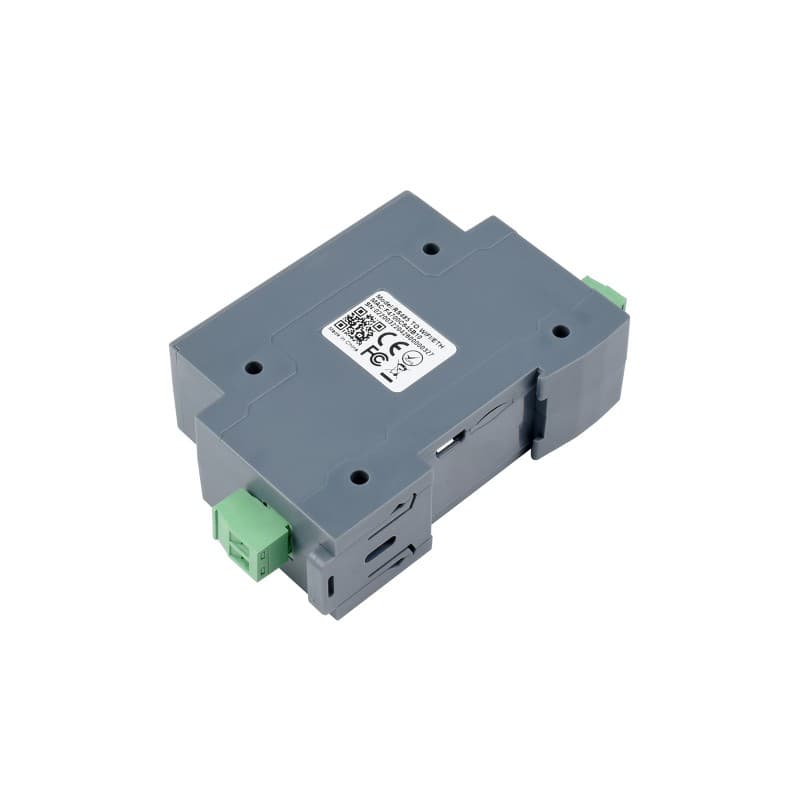

EmberNET SerialLink

For deployments that only need RS485, not the added RS232 port, SerialLink strips the SerialBridge down to exactly that: a dedicated RS485-to-WiFi-and-Ethernet serial server in a small rail-mount enclosure. It runs the same core functions, serial server, Modbus gateway, MQTT gateway, RS485-to-HTTP client, in a case built specifically for DIN rail installation rather than wall mounting. Power comes in through a screw terminal accepting 5 to 36V DC, and the RS485 port carries anti-surge, lightning, and over-current protection, standard for equipment that's expected to sit on an industrial bus for years. WiFi runs on 802.11b/g/n with Station, AP, and AP+Station modes, WPA-PSK/WPA2-PSK security, and baud rates from 300 to 460800bps, covering the range most RS485 field devices actually use. The flame-retardant PC+ABS case keeps things compact (109.66 x 28 x 64.71mm) without sacrificing the industrial protection ratings the rest of the lineup carries. Key Features Dedicated RS485-to-WiFi-and-Ethernet serial server Built-in Modbus gateway, MQTT gateway, and HTTP client Anti-surge, lightning, and over-current protected RS485 port 802.11b/g/n WiFi (Station/AP/AP+Station modes) Baud rate range: 300 to 460800bps 5 to 36V DC screw terminal power input Compact, flame-retardant rail-mount case

• Default variant
  Stock not tracked for this item
