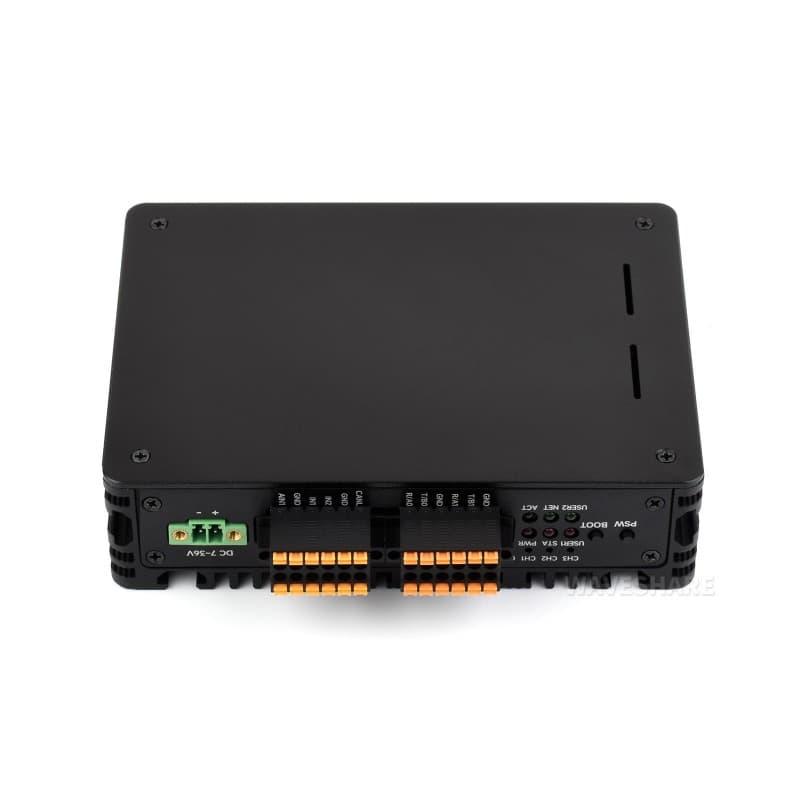

Industrial Computer, Gigabit Ethernet, RS485/RS232, 4G/5G Ready (HMI Series)

A compact carrier and enclosure system built around a compute module socket, designed for HMI, industrial gateway, and remote monitoring deployments that need real serial connectivity and cellular flexibility in a single sealed unit. The aluminum alloy case handles heat dissipation on its own, no active cooling required for most workloads, and the whole thing ships in two configurations depending on which serial mix your application calls for. The base version brings four RS485 ports for pure industrial serial work, while the alternate configuration splits that into two RS485 plus two RS232, covering both modern fieldbus devices and older RS232-only equipment on the same board. Either version adds a 1Mbps CAN interface, two digital inputs, two digital outputs, and two analog inputs (with 4-20mA current loop support available by desoldering a jumper), giving you a genuine mix of I/O for monitoring and control tasks without a separate DAQ module. Networking runs over a single Gigabit Ethernet port, and an M.2 B KEY socket accepts a 4G or 5G communication module (sold separately) for sites without wired connectivity. Storage expands through an M.2 M KEY slot supporting NVMe drives up to 2280 in size, which boots and runs noticeably faster than a microSD card. A built-in supercapacitor with power-loss protection keeps the system safe during sudden power interruptions, an onboard EEPROM and encryption chip add hardware-level configuration security, and the unit supports both rail-mount and VESA mounting, so it fits panel installs and wall-mounted deployments alike. Key Features ARM64 Cortex processor Two configurations: 4x RS485, or 2x RS485 + 2x RS232 1x CAN interface (up to 1Mbps), 2x digital inputs, 2x digital outputs, 2x analog inputs M.2 B KEY socket for 4G/5G cellular modules (sold separately) M.2 M KEY slot for NVMe SSD (up to 2280) or AI acceleration modules Gigabit Ethernet RJ45 port Power-loss protection via onboard supercapacitor Onboard EEPROM and encryption chip Aluminum alloy case with passive heat dissipation Rail-mount and VESA mounting support Wide 7V to 36V DC power input Manufactured under the Fireball brand starting at 2gb at $500 4gb at $550 8gb at $650 16gb at $900

• $500 / $550 / $650 / $900
  Stock not tracked for this item
