Industrial Wireless Expansion Board

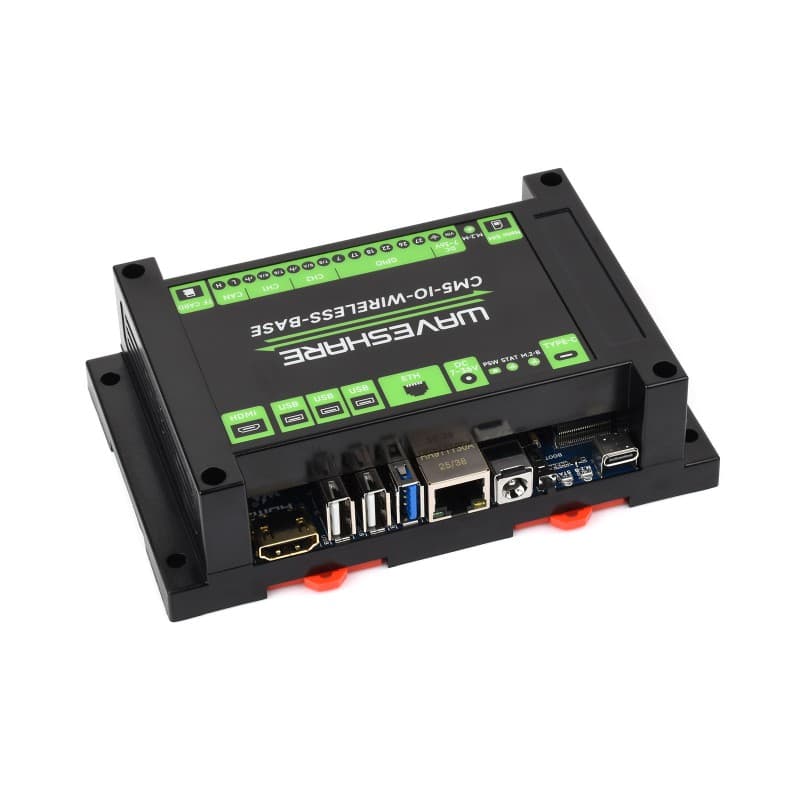

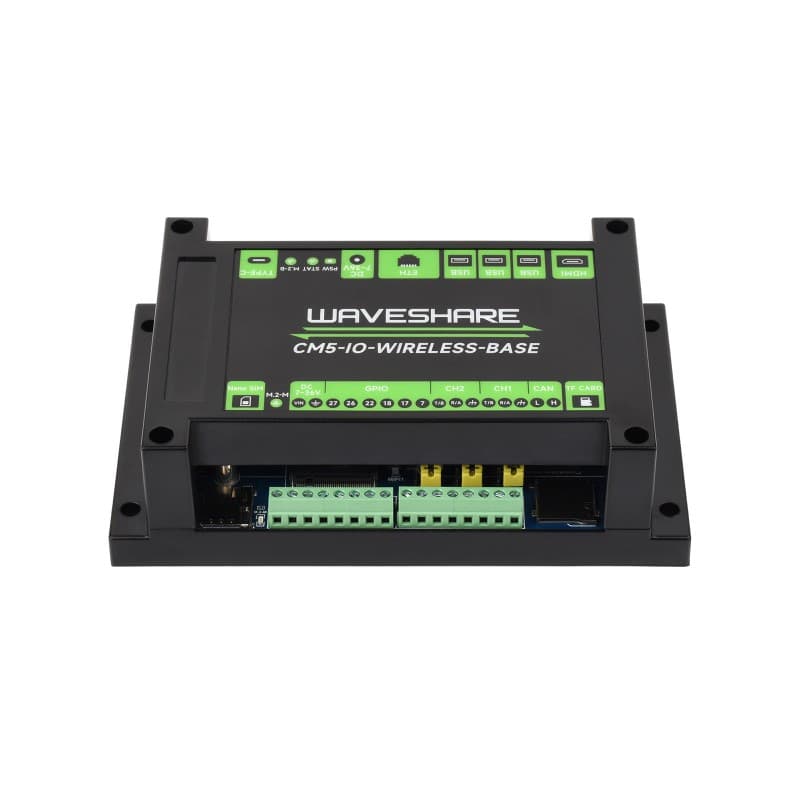

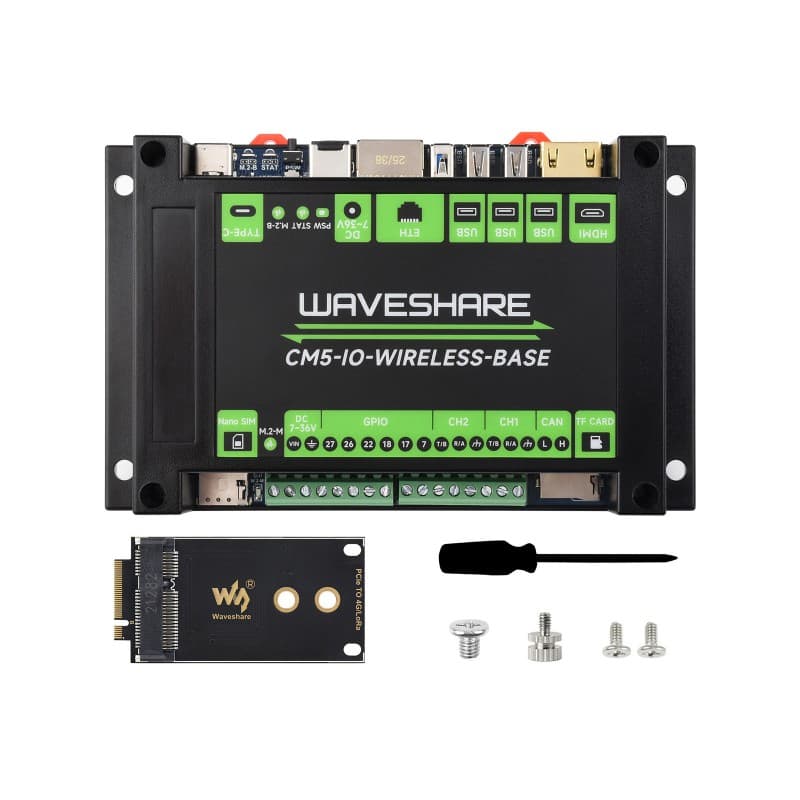

Built for IoT gateway, wireless router, and remote data acquisition duty, this expansion board wraps cellular, LoRa, and wired networking into one carrier for a compute module core. An onboard M.2 B KEY slot accepts 4G or 5G communication modules directly, and the included Mini-PCIe adapter opens the same slot to LoRa modules, so the board can pivot from cellular gateway to LoRa gateway depending on what a deployment needs, without swapping hardware. Serial connectivity leans industrial-grade throughout. Dual isolated RS485 ports come with lightning, surge, and ESD protection built in, and an isolated CAN interface adds the same protection for controller-area network work, both with selectable 120-ohm terminal resistors for clean bus termination. Six GPIO pins connect directly to the compute core for custom control logic, and a Gigabit Ethernet port handles wired networking whenever it's available. Storage runs through an M.2 M KEY slot supporting 2230 and 2242 NVMe drives or AI acceleration modules, and dual MIPI interfaces support CSI cameras or DSI displays for applications that need local vision or a small onboard screen. The board is built with reserved space for a heatsink or cooling fan depending on thermal load, and it ships with rail-mount support for straightforward cabinet installation, a natural fit for IoT gateways, industrial PLC bridges, and monitoring stations running in the field. Key Features ARM64 Cortex processor M.2 B KEY socket for 4G/5G modules, plus included Mini-PCIe adapter for LoRa modules Dual isolated RS485 with lightning, surge, and ESD protection Isolated CAN interface (up to 1Mbps) with selectable 120-ohm termination 6x GPIO pins wired directly to the compute core M.2 M KEY slot for NVMe SSD (2230/2242) or AI acceleration modules Dual MIPI interfaces for CSI cameras or DSI displays Gigabit Ethernet RJ45 port Rail-mount support with reserved cooling space Wide 7V to 36V DC power input Manufactured under the Fireball brand starting at 2gb at $500 4gb at $550 8gb at $650 16gb at $900

• $500 / $550 / $650 / $900
  Stock not tracked for this item
